CB-3012 series Electric Cabinet-lock |
|
|
|
 |
Field selectable fail locked or fail unlocked assembly |
|
|
Surface-mounted compact electric lock |
|
|
Field selectable dual voltage 12/24VDC operation |
|
|
12VDC-280mA
24VDC-140mA |
|
|
Lock Status Sensors output (COM.,NO.,NC.) |
|
|
Door Status Sensors output (NO. Type) |
|
|

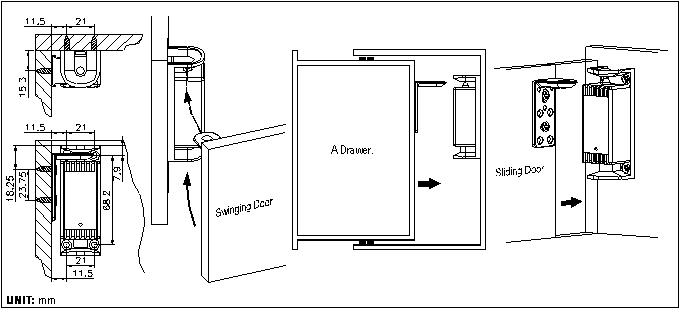

Lock body:84Lx30Wx28H |
|
|
Striker plate:52Lx24Wx32D |
|
|
CE RoHS/ Patented |
|
|
| |
|
 |
I. Order Information
|
Item
|
Contents
|
LED
|
Lock Status Sensor
|
Door Status Sensor
|
Lock mode (Default)
|
|
CB-3012S\LD
|
12VDC or 24VDC
|
●
|
●
|
●
|
Fail-Secure (Power to open)
|
|
CB-3012S\L
|
12VDC or 24VDC
|
●
|
●
|
×
|
Fail-Secure (Power to open)
|
|
CB-3012F\LD
|
12VDC or 24VDC
|
●
|
●
|
●
|
Fail-Safe (Power to lock)
|
|
CB-3012F\L
|
12VDC or 24VDC
|
●
|
●
|
×
|
Fail-Safe (Power to lock)
|
II. Specifications
|
Power input
|
12VDC
|
24VDC
|
Stable PSU recommended
|
|
Current
|
0.28A
|
0.14A
|
Changeable by power input and higher outer temp.
|
|
Door Status Sensor (DSS)
|
Max.3W; Max.30VDC;Max.0.2A
|
COM., NO.
|
|
Lock Status Sensor (LSS)
|
Max.30VDC;Max1A
|
COM., NO., NC.
|
|
|
|
 |
|
|
